In some instances, the truss system found in your building may be strong enough to support a fall protection system. By permanently attaching a D-Ring anchor to the bottom chords of an overhead truss system, we can create an OSHA-compliant anchor point that serves as part of a fall arrest system. Unlike our Connect Safe Portable Truss Anchors, the Fixed Truss Single Point Anchor is mechanically attached with steel plates and a threaded bolt and nut combination.
Installation Notes:Truss anchorage locations must be approved by a safety engineer or a qualified person and must meet all of the requirements noted in the Connect Safe Fixed Truss Anchor Instruction Manual.
Bracing shall be straight, undamaged, and meet the original design intent
The span and loading of the truss affects the allowable concentrated load that may be applied to the truss. It must be capable of withstanding a concentrated load of 900 pounds with a safety factor of two
No more than one user is permitted at a time per truss
Do not attach to a truss that is smaller than 18 inches in height
The truss must be inspected by an engineer or qualified person for structural integrity which includes but is not limited to corrosion, end connections, size, load capacity, welds, existing loading, bracing, span, or any other unsafe conditions

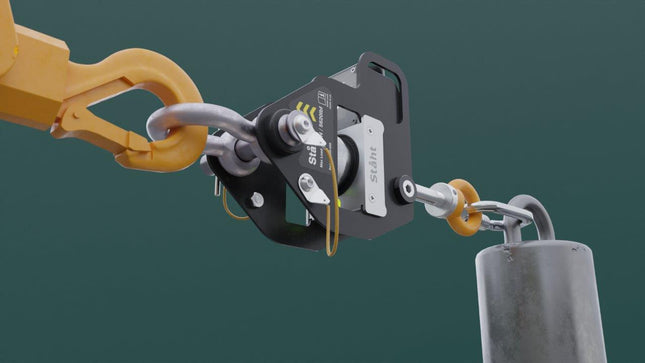

The Staht In-Line Test Kit, is a modular accessory which works with the Staht t25 load cell to measure force of up to 25kN (5620 lbf) between two points. Includes Black padded bag pictured.

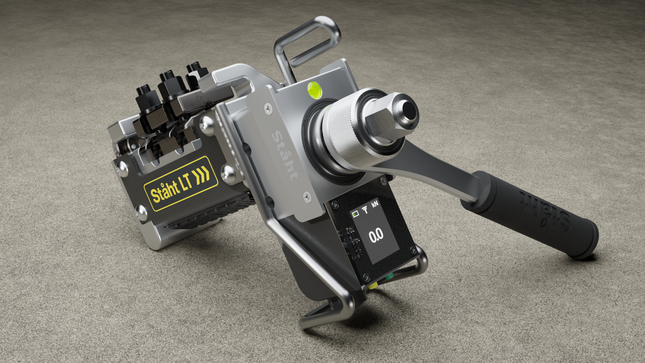

For use with the Staht LT (Line Tester) when testing safety lifelines with slip indicators fitted to the front end of termination (swage).
The extension adaptor bypasses the slip indicator.
Note: Images show the LT Extension Adaptor attached to the Staht LT, which is purchased separately.
This kit includes M16 Sealed Thrust Nut, M16 Drop Rod (fine thread) and Anti-Rotation Nut. It does not include the Anti-Rotation Handle.
Can be used on both the t25 and t60 pull testers.
Rated to Max 60kN.
Trauma straps are a short-term solution alleviates effects of suspension trauma when a fall occurs. The worker becomes suspended in their harness, remaining vertical and sedentary for a long period of time. This causes blood to pool in leg veins, restricts flow to the brain and other major organs which may cause unconsciousness. This device attaches to any brand full-body fall protection harness; By utilizing one trauma strap for each leg/foot, the worker is more comfortable until rescue is completed.
MSA 63306-00A Stainless Steel Cable SRL 20' (6m) Clear Housing V-TEC Ultimate Worlds Smartest Model Retractable
With premium Stainless Steel components and innovative engineering, the V-TEC Self Retracting Lifeline incorporates a precision-made spring radial energy absorber that requires zero calibration or adjustment. The retraction dampening feature controls cable retraction speeds preventing pre-mature and accidental load indicator deployment.
Meets or Exceeds ANSI Z359.14-2012 / OSHA 29 CFR 1910.66 - 1926.502 / CSA Z59.2.2-98 (R2009) / EN 360: 2002
Features and Specs:
Completely field-serviceable with minimal components
Spring radial energy absorbing technology requires zero calibration or adjustment
Retraction dampening features controls the cable speed to <3m/s
20 ft. (6m) length
High-impact, clear polycarbonate housing simplifies pre-use inspection
Fully rotating attachment point for complete user mobility
Stainless Steel cable and components
400 lbs. worker capacity
The LadderLatch climbing device is a device for use on the MSA Latchways vertical systems with energy absorber. It incorporates the unique starwheel, allowing the unit to pass over cable supports without the need to detach. It also includes an anti-inversion mechanism so the device cannot be connected to the cable upside down.
The Latchways LadderLatch is SOLD SEPARATELY
The Latchways Standard Self-Retracting Lanyard range offers a dependable means of fall protection and has been specifically designed for use in a number of different environments enabling an unhindered hands-free fall protection solution. Utilizing modern engineering and innovative design, they are the most advanced self-retracting lanyards on the market.
Completely field serviceable
Frictionless Constant Force® braking mechanism
ATEX assessed
Impact resistant housing
100% Full Contact™ locking mechanism
Stainless steel chassis & components
MSA FP Pro Rope Grab withSure-Stop Lanyard is built to be used together as a system. The rope grabs are designed as a means of fall arrest between your compatible full-body harness and a suitable fall arrest anchorage. Some applications for the MSA FP Pro Rope Grab with Sure-Stop Lanyard include roofing, ladder climbing, general construction, and tower climbing.
Features:
Stainless steel fall arrester
Built for compatibility as a system
2 and 3-foot options
Rope Compatibility: 5/8" (16mm) synthetic rope, can be 3-Strand Rope
Specifications:
EN 353-2 Certified
ANSI Z359.1-2007
