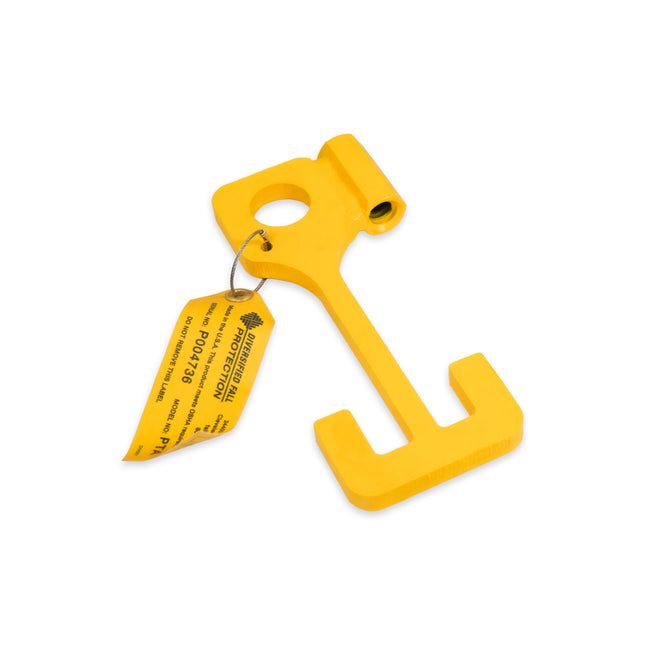

Portable Truss Anchors are the easy, cost-effective alternative to permanent single-point anchors. They connect to your existing overhead truss system without requiring penetrating installation and install in minutes.
• OSHA 1926.502 and ANSI Z359.1 compliant• Fast and easy installation• 310 lb. single user rating• Compatible with K, KCS, LH, and DHL truss systems

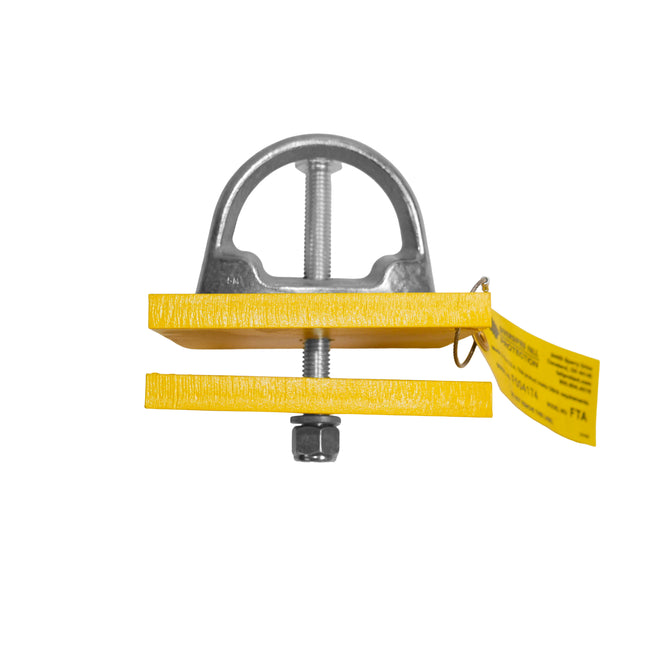

In some instances, the truss system found in your building may be strong enough to support a fall protection system. By permanently attaching a D-Ring anchor to the bottom chords of an overhead truss system, we can create an OSHA-compliant anchor point that serves as part of a fall arrest system. Unlike our Connect Safe Portable Truss Anchors, the Fixed Truss Single Point Anchor is mechanically attached with steel plates and a threaded bolt and nut combination.
Installation Notes:Truss anchorage locations must be approved by a safety engineer or a qualified person and must meet all of the requirements noted in the Connect Safe Fixed Truss Anchor Instruction Manual.
Bracing shall be straight, undamaged, and meet the original design intent
The span and loading of the truss affects the allowable concentrated load that may be applied to the truss. It must be capable of withstanding a concentrated load of 900 pounds with a safety factor of two
No more than one user is permitted at a time per truss
Do not attach to a truss that is smaller than 18 inches in height
The truss must be inspected by an engineer or qualified person for structural integrity which includes but is not limited to corrosion, end connections, size, load capacity, welds, existing loading, bracing, span, or any other unsafe conditions
3M's anchorage connectors are built from quality materials providing high strength and durability to stand up to the toughest environments. Anchorage connectors are the foundation of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.

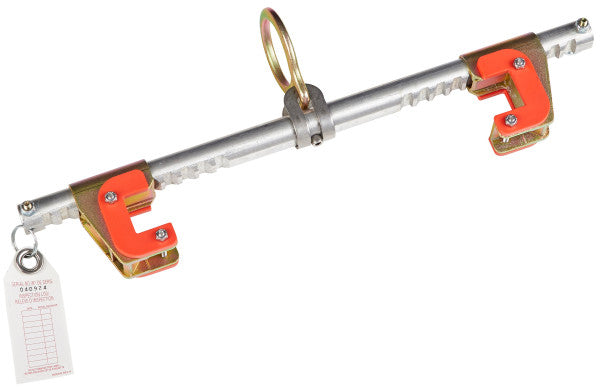

3M DBI SALA 1003000 Pass-Through Design 3' Beam Anchor
Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.
Meets or Exceeds OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req., ANSI Z359.1
Features and Specs:
3 ft. (0.9m) pass-thru type tie-off adaptor
Durable polyester construction
Abrasion resistant polyester wear pad
High strength steel hardware
Compact and lightweight design
Weight capacity: 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA
Integrated 5,000 lb. (22 kN) mast anchorage point
Depending on davit base, rated for fall arrest in different davit offset mast positions
Adjustable vertical height
Integrated secondary fall arrest anchorage point
For use with portable and permanent bases
Recommended for use in many industries

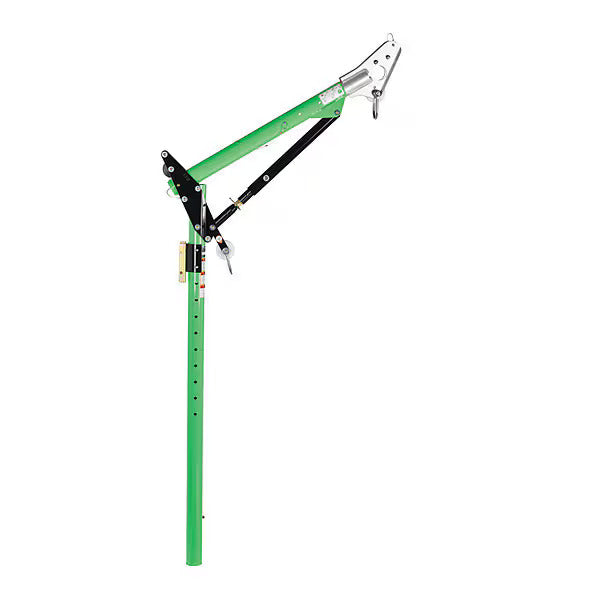

Multi-purpose 3M™ DBI-SALA® Confined Space One-Piece Adjustable Offset Davit Mast is durable and high strength; just the component workers need to help ensure secure fall protection and successful rescue and retrieval. The offset davit mast meets OSHA confined space regulations featuring an easily adjustable telescoping design and strong aluminum construction that helps stands up to weather and rugged use.
Davit mast helps for swift and safe ascent and descent into and out of confined spaces and is in all offset mast positions. Built with durable aluminum and a telescoping pole that adjusts easily, this rescue tool is the top choice for workers in multiple industries who trust this safety equipment with their lives. Pins connect quickly and release easily, ensuring fast and easy set-up, breakdown, transport, and storage. Featuring lightweight, durable aluminum construction, the davit mast helps to stands up to the harsh effects of bad weather and repeated use. Integrated 5,000 lb. (22kN) mast anchorage point easily attaches to winches or self-retracting lifelines with a quick-mount bracket. The upper davit mast detent and knob-style adjustment is designed for use with portable and permanent bases. The offset davit mast is easy to use and transport, helping industrial pros to get from one place to the other without delay.
Floor and core mount base options
Corrosion resistant plated hardware
Bolt-in install to existing concrete or steel floors
High strength steel and PVC construction
Lightweight aluminum construction
360 degree mast rotation
PVC davit mast sleeve liner
Zinc plated hardware
Designed for permanent installation
3M™ FlexiGuard™ Sky Anchor System Base, Floor Mount for Concrete and Steel is corrosion resistant plated hardware.
The FlexiGuard™ Sky Anchor solutions provide a secure anchorage point, giving the worker increased coverage range and protection while working at heights. All systems are rated for one person use and provide 360° mobility within the safe working radius from the anchor point. All available systems incorporate a collapsible design for easy setup, as well as a variety of bases for securing the system onto any job site. Whether it’s an existing or modified product, or an entirely new design, our systems are designed to help you meets the requirements of your specific application. 3M systems are designed to meet our customers' needs across multiple industries, environments, and government standards.
The Portable Truss Anchor Kit is a bundle that includes everything you'll need to have a safe overhead system, and includes:
Portable Truss Anchor
Extension Pole
4" Steel Ring
Grab Hook
3M Self-Retracting Lifeline
Safety Harness
Great for when you need more freedom to perform on-site tasks, our Protecta® Rail and Beam Anchor systems help free up hands so tools are easily accessible. 3M's lightweight rail and beam anchors for fall protection applications deliver optimal horizontal mobility with smooth-operating hardware that lets you stay focused on your job. The anchoring safety equipment combines ease of installation and strength. Connect your fall arrest system by attaching your safety lanyard to the carabiner while connecting the other end to the fall arrest harness and you’re ready to get to work. Protecting your workers and elevating their comfort and safety is the number one priority for 3M Fall Protection. That’s why we’ve built our Rail and Beam Anchor systems from durable materials and hardware that help resist corrosion and stand up in harsh environments.
