The Staht t25 Digital Pull Tester kit provides all you need to carry out pull testing on anchors and eye safety bolts up to 25kN, helping you comply with worldwide industry standards and guidance such as: BS8539 & BS7883 NASC guidance TG4:19 AEFAC guidance TN05
Kit Contents.
25kN Load Cell, featuring Bluetooth® wireless technology.
Staht® Connect App for Android and iOS set up instructions.
Bridge (rated to 25kN), features quick release fixings for easily removing the load cell for use in other Staht products.
Drop Rod & Sealed Thrust Nut.
Jaw.
Clevis, with captive pin.
Threaded Washer Pack (M6/M8/M10/M12/M16).
Slotted Washer Pack (M6/M8/M10/M12/M16).
Anti-Rotation Pull Out Handle, fits to drop rod.
24mm Reversible Ring Ratchet Spanner with comfort handle.
Tester Lanyard (Rated to 8kg).
Wrist Tool Lanyard (Rated to 0.9kg).
USB Charging Cable.
Rugged protective case, with foam insert.
12 months calibration certificate provided.
User Instruction Manual.
Made from hardened and tempered chrome vanadium with a comfortable rubber handle.
It incorporates a bi-hexagonal 15 degree offset ring, possessing a reversible 72 teeth lever ratcheting system that requires only 5 degree movement to operate, making it ideal for use in tight areas. Total length 289mm.
The handle also incorporates a loop hole to enable the user to attach a tool lanyard, for safety when working at height.
The Tool Adaptor Jaw is used in conjunction with threaded and slotted washers to test anchors, bolts and studs.
The Jaw is magnetic, holding the washers in position whilst testing and helps to prevent inadvertent loss and drops at height.
For testing safety eye bolts, lifting eyes and load bearing connections.
Connects to the Drop Rod for t60 and t25 (Part Nos 600-008, 600-045).
A captive pin prevents inadvertent loss and enables faster engagement with the eyebolt.
Quick release knob for use with Staht t25 and t60 testers.
These make it quick and easy for the user to remove and re-attach the t25 or t60 load cell from/to the standard t25/t60 bridges.
This kit includes M16 Sealed Thrust Nut, M16 Drop Rod (fine thread) and Anti-Rotation Nut. It does not include the Anti-Rotation Handle.
Can be used on both the t25 and t60 pull testers.
Rated to Max 60kN.
The Staht t60 Digital Pull Tester is a compact, powerful and innovative machine, enabling the user to reach 60kN with ease. It provides a single solution for all typical on-site proof testing applications. The digital interface and Bluetooth ® Connectivity provide an excellent user experience and an efficient reporting workflow to improve productivity.
Kit Contents
60kN Load Cell, featuring Bluetooth® wireless technology.
Staht® Connect App for Android and iOS set up instructions.
Bridge, with leg braces (rated to 60kN), features quick release fixings for easily removing the load cell for use in other Staht products.
Drop Rod & Sealed Thrust Nut.
Jaw.
Clevis, with captive pin.
Threaded Washer Pack (M6/M8/M10/M12/M16/M20).
Slotted Washer Pack (M6/M8/M10/M12/M16).
Anti-Rotation Pull Out Handle, fits to drop rod.
24mm Reversible Ring Ratchet Spanner with comfort handle.
3/8″ Socket Wrench with 17mm Socket.
Tester Lanyard (Rated to 8kg).
Wrist Tool Lanyard (Rated to 0.9kg).
USB Charging Cable.
Rugged protective case with foam inlay.
12 months calibration certificate provided.
User Instruction Manual.

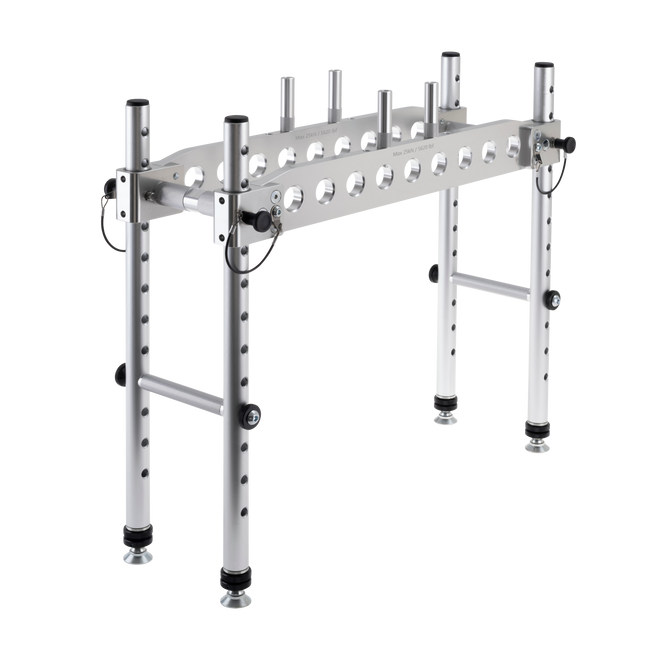

Modular Bridge 575-25 for use with Staht t25 or t60 Digital Pull Testers**.
Max Load 25kN; 575mm Span
Adjustable leg height, maximum clearance 544mm
Kit bag with shoulder straps and internal roll bag included.
**t25 & t60 Digital Pull Testers are not included.
The Staht In-Line Test Kit, is a modular accessory which works with the Staht t25 load cell to measure force of up to 25kN (5620 lbf) between two points. Includes Black padded bag pictured.
